Lincoln Lake dam at Lincoln State Park

Lincoln Lake Dam at Lincoln State Park.

Indiana has 1388 jurisdictional dams in the state. The Indiana Department of Natural Resources Dam Safety Program regulates the construction, operation, and maintenance of Indiana’s dams to protect life and property from damages due to failure of dams. The program also assists with emergency preparedness activities.

Types of dams

A dam is a structure built across a stream, river or an estuary to store water. They serve many purposes such as recreation, water supply, flood control, sediment control, and energy generation.

Types:

  • Earthfill dams
  • Rockfill dams
  • Concrete dams

Most dams in Indiana are earthfill embankment dams.

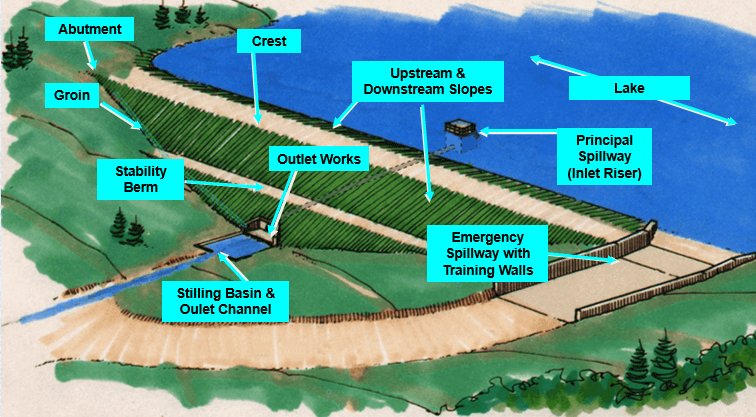

Typical earthen dam

Earthen dam diagram

Image courtesy of Natural Resources Conservation Service, USDA.

The risk

Knowing and reducing the risks of dams can save lives and property. Dams most often fail during an extreme rainfall event due to unrecognized or unaddressed design or maintenance deficiencies.

Dam Breach Inundations

Flood inundation maps show the area potentially impacted by the uncontrolled release of water impounded behind a dam. Tools for viewing these dam breach inundation maps provide the dam safety community access to important information about flood risks from dams. These dam breach inundation maps support flood preparation and response activities, including emergency planning and community preparedness. The Indiana DNR Division of Water has made available the Dam Breach Inundation Area Web App, where the flood inundation extent from potential dam breaches in the State of Indiana can be accessed. This Dam Breach Inundation Area Web App provides the best information available for the public and communities to understand potential flood risk from dams in Indiana and empowers them to make more informed decisions in planning and responding to flood events.

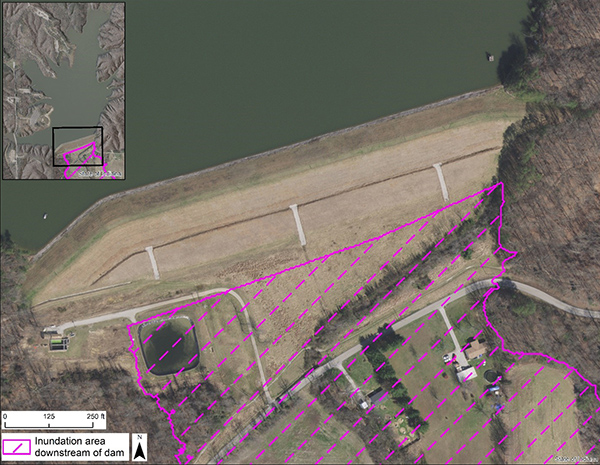

Earthen dam diagram

The potential inundation area immediately downstream from an uncontrolled dam breach.View map.

Past Failures

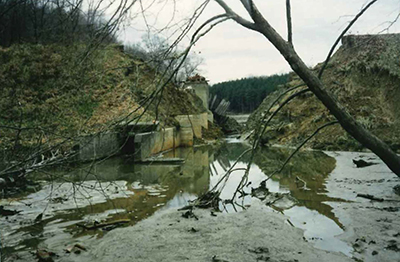

Failed dam in Bean Blossom

Bean Blossom, Monroe County.

The Association of State Dam Safety Officials (ASDSO) offers a series of publications about Living With Dams. These e-booklets were created to help answer questions about dams: purposes they serve, risks associated with dams, and where to get information about how to react if you are affected by a dam. The Indiana DNR Dam Safety Program is a member of the association.

Dams in Indiana

A dam is under Indiana DNR’s jurisdiction if it meets any of the following criteria:

  • Has a drainage area above the dam of more than one square mile.
  • Exceeds 20 feet in height.
  • Impounds a volume of more than 100 acre-feet of water.
  • High-hazard classification through successful petition by a downstream property owner.

Those that are federally owned and operated are not under Indiana’s jurisdiction.

Dams under jurisdiction are inspected by the Indiana DNR Dam Safety Program field staff or a private engineer approved by Indiana DNR every 2-5 years.

Hazard classification

A dam is assigned a hazard classification based on how much damage and loss of life could occur if it fails. These classifications are assigned by Indiana DNR. The classification can change when downstream conditions change.

High hazard: The failure of a structure may cause the loss of life and serious damage to homes, industrial and commercial buildings, public utilities, major highways, or railroads.

  • Number of high hazard dams in Indiana: 278.
  • Example: Eagle Creek Reservoir dam in Marion county.

Significant hazard: The failure of a structure may damage isolated homes and highways, or cause the temporary interruption of public utility services.

  • Number of significant hazard dams in Indiana: 321.
  • Example: Glendale Reservoir Dam in Daviess County.

Low hazard: The failure of a structure may damage farm buildings, agricultural land, or local roads.

  • Number of low hazard dams in Indiana: 789.
  • Example: Broad Ripple Dam in Marion County.

Dam ownership

All dams, including dams that fall under Indiana DNR jurisdiction, should be operated and maintained in a safe manner. Under Indiana law (IC 14-27-7.5-7), the owner of a structure is required to maintain and keep the structure in safe operating condition.

Own a Dam?

Contacts

Dam & Levee Safety Section
Division of Water
Indiana Department of Natural Resources
402 W. Washington St, Room W264
Indianapolis, IN 46204
877-928-3755
317-232-4160
DOWDams@dnr.IN.gov

Indiana Dam Education & Awareness Meetings

Presented by the Indiana Silver Jackets and partnering agencies, this program is for dam owners, local planning and EMA officials, first responders. These meetings cover dam safety awareness and education, including an overview of Indiana dams, case histories, inspection and maintenance, flood inundation maps, and emergency action plans.

  • CM Harden Dam, Tuesday, Aug. 2, 2022

    10-11:30 a.m. dam tour: CM Harden Dam
    Address: 3391 S. Dam Rd., Rockville, In 47872

    1-4 p.m. meeting: Bellmore Fire Department Community Room
    Address: 7020 E. U.S. Hwy 36, Rockville, In 47872

  • Roush Dam, Tuesday, Aug. 30, 2022

    10-11:30 a.m. dam tour: Roush Dam*
    Address: 735 N Warren Rd., Huntington, In 46750

    1 - 4 p.m. meeting: Huntington City-Township Public Library**
    Address: 255 W Park Dr., Huntington, In 46750

    **Note: this event and its associated viewpoints are neither sponsored nor endorsed by the Huntington-City Township Public Library or its staff.

  • Patoka Dam, Tuesday, Sept. 13, 2022

    10-11:30 a.m. dam tour: Patoka Dam*
    Address: 4512 N Cuzco Rd. S., Dubois, In 47527

    1-4 p.m. meeting: Dubois Branch Public Library
    Address: 100 3rd Ave Suite B, Jasper, In 47546

  • Additional information

    * Dam tours are an optional component of the meetings. If attending, please wear appropriate clothing and footwear for weather and walking over uneven terrain.

    Lunch and beverages will not be provided. Please bring your own water, a non-perishable lunch or plan to dine at nearby restaurants. A lunch break will be provided.

  • Sign up

    Meetings are free but space is limited, so please sign-up by emailing the following information to jennifer.stromberg@usace.army.mil or brandon.r.brummett@usace.army.mil:

    • Your name
    • Email or phone number for contacting about the meeting
    • Which meeting you will be attending
    • If you are planning to attend the dam tour
    • Any specific accommodations you will need
  • Contact

    For questions or additional information please contact:

    Jennifer Stromberg
    Project Manager
    U.S. Army Corps Of Engineers, LRL
    Phone: (502) 315-6780
    Jennifer.Stromberg@Usace.Army.Mil

    Brandon R. Brummett
    Outreach Coordinator
    U.S. Army Corps Of Engineers, LRL
    Phone: (502) 649-3190
    Brandon.R.Brummett@.Usace.Army.Mil
